PANTHER PICKUP

PANTHER PICKUP TURBO

SPESIFIKASI | SPESIFICATION

DIMENSI	LC	FD	GD
Panjang	4,360 mm	4,360 mm	4,655 mm
Lebar	1,650 mm	1,650 mm	1,820 mm
Tinggi	1,725 mm	1,725 mm	1,790 mm
Jarak Poros Roda	2,680 mm	2,680 mm	2,680 mm
Jarak Terendah	195 mm	195 mm	195 mm
Jarak Pijak Roda Depan	1,405 mm	1,405 mm	1,405 mm
Jarak Pijak Roda Belakang	1,375 mm	1,375 mm	1,375 mm

DIMENSI BAK	LC	FD	GD
Tipe Bak	Ada Wheelhouse	Flat	Flat
Jumlah Bukaan Bak	1 Bukaan	1  Bukaan	3 Bukaan
Panjang Bak Belakang (uk. dalam)	1,900 mm	1,900 mm	2,166 mm
Lebar Bak Belakang (uk. dalam)	1,530 mm	1,530 mm	1,666 mm
Tinggi Bak Belakang (uk. dalam)	455 mm	280 mm	380 mm

BERAT	LC	FB	GD
Berat Kendaraan Kosong	1.260 kg
Gross Vehicle Weight	1.990 kg
Daya Muat Orang	3 orang
KEMAMPUAN
Radius Putar Minimum	4,7 m

MESIN	LC	FB	GD
Model	4JA1L
Tipe	4JA1L Diesel Direct Injection with Turbocharger
Sistem Injeksi Bahan Bakar	Direct Injection
Diameter x Langkah	93 x 92 mm
Isi Silinder	2.499 cc
Daya Maksimum	80/3.500 ps/rpm
Torsi Maksimum	19,5/1.800 kgm/rpm

TRANSMISI	LC	FB	GD
Model	MSG5K
Rasio Gear	1st 4,122
	2nd 2,493
	3rd 1,504
	4th 1,000
	5th 0,855
	Mundur 3,720

SETIR	LC	FB	GD
Model	Integral Piston, Recirculation Ballnut Engine Speed Sensing
Tipe Kemudi	Power Steering
REM
Rem Depan	Disk
Rem Belakang	Tromol
BAN & RODA
Ukuran Ban	165 R13
Ukuran Roda	4,5 J Steel
SUSPENSI
Suspensi Depan	2 Wishbone Arm, Torsion Bar, Spring Stabilizer
Suspensi Belakang	Rigid Axle Semi Elliptical, Steel Leaf
LAIN - LAIN
Kursi Supir	Sliding dan Reclining, terpisah dengan kursi penumpang
Seat Belt	Tipe Otomatis
Accu	12-65 V-A
Alternator	12-50 V-A
Kapasitas Tangki	51 liter

---

HARGA | PRICE

PANTHER PICKUP TURBO LC

Rp. 166.200.000,-

PANTHER PICKUP TURBO FB

Rp. 168.000.000,-

PANTHER PICKUP TURBO GD

Rp. 169.100.000,-

(*) Harga On The Road

(*) Harga Dapat Berubah-ubah Tanpa Pemberitahuan Terlebih Dahulu

---

FITUR | FEATURES

Material Bak yang Kuat

2500 cc Diesel Direct Injection with Turbocharger

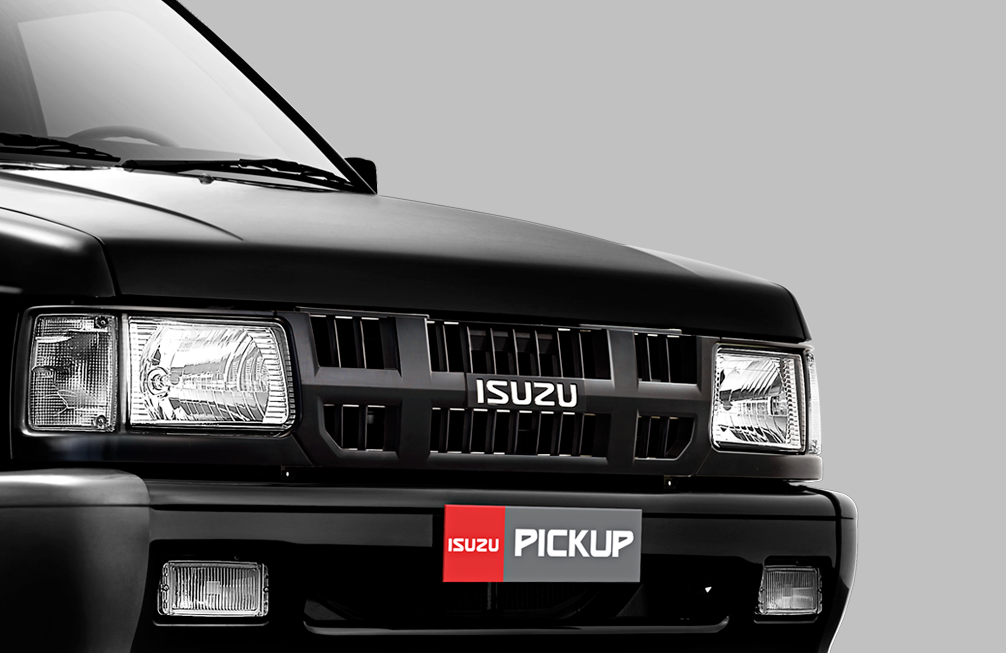

Front Grille

Fog Lamp

Crystal Head Lamp and Clear Sign Lamp
